REGULATEURS EUROPA is able to supply integrated propulsion control systems for vessels with fixed/controllable pitch propellers and/or water jets, multiple engines into single gearboxes, and diesel power generators. By integrating digital speed governing with engine, generator management and propulsion control, customers are provided with a cost-effective system whose modular form assures easy installation.
PCP Main Features
Within the single bulkhead mounted enclosure is the sophisticated Viking digital governor, with flexible propulsion controls and essential hardwired safety circuits. This leaves the scope and the level of monitoring specifically to suit the customer's requirements. Designed to fully meet the requirements of the various marine classification societies it already applications as diverse as fast military patrol vessels, luxury yachts, fast ferries and commercial shipping.
In addition to speed governing the PCP provides:
The fundamental control functions are programmed with customer specific parameters designed to suit and protect the engine. These parameters are accessible via the user-friendly operator interface display which allows setting up and tuning while the engine is running. Local manual control is obtainable via front mounted switches and push buttons.

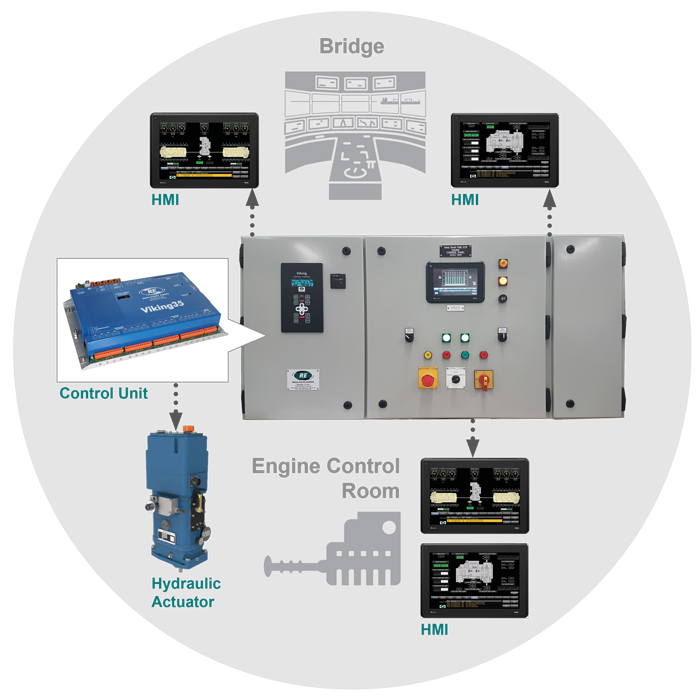

The Viking35 ECU, along with its Viking Vision user interface, provides the core platform for combined engine management. With its large and expandable range of conventional I/Os and communication ports, Viking35 is more than just a governor; it can be programmed to do all engine management functions and control associated plant, in one integrated and cost effective package. The Viking35 ECU is complemented by a range of hydraulic actuators, specifically the 2231 servo actuator, which provides a ballhead mode for manual speed setting in the event of power supply failure.
Technical data
In addition to the engine's controls the propulsion control panel can provide the control for external facilities.
Control of:
Building further on the PCP, REGULATEURS EUROPA can produce a complete range of solutions for marine engine control and monitoring, tailored for the vessel and its application. Based on the depth of knowledge within the company, these can range from standard systems to bespoke solutions to meet the customer’s specific requirements.
The PCP is designed to interface with proprietary water jet and controllable pitch propeller systems. To complete the package REGULATEURS EUROPA can also offer various control stations such as bridge, open bridge/bridge wing and/or machinery control consoles.
The engine control stations would normally have instrumentation, start and stop facilities, ships telegraph and monitoring systems or other features built to classification society requirements. If the system is fixed pitch command levers and transfer of control can also be provided.
REGULATEURS EUROPA is able to supply integrated propulsion control systems for vessels with fixed/ controllable pitch propellers and/or water jets, multiple engines into single gearboxes, and diesel power generators. By integrating digital speed governing with engine, generator management and propulsion control, customers are provided with a cost-effective system whose modular form assures easy installation.
Systems may incorporate:
