The typical panel shown includes all of the necessary I/O to interface with the engine, generator and ships systems. The Windows based PC software provides an easy interface with the generator control panel; allowing performance to be monitored and parameters changed by authorised personnel.
Control and monitoring panels for specialized applications
Specialised applications such as front-line military vessels require hardware designed to withstand the adverse environment. REGULATEURS EUROPA is experienced in the design and manufacture of integrated control and monitoring panels designed to perform in ships where vibration and shock etc are a major factor.
At the heart of many generator control panels is the Viking35 ECU which combines the engine management functions together with multi engine electrical and/or mechanical load sharing, via load measure transducers.
Technical data
Generators
The module enables the ICENI distributed system to be connected as a slave node onto an RS-485 Modbus RTU network.
Technical data
The module enables the ICENI distributed system to be connected as a slave node onto a CANopen network.
Technical data
The module enables the ICENI distributed system to be connected as a slave node onto a DeviceNet network.
Technical data
The module provides a stabilised supply for the distributed system.
Technical data
This module provides a redundant stabilised supply for the distributed system.
Technical data
The module provides four, individually isolated input channels, for monitoring field sensors [pressure, level, position, etc.].
Technical data
The module provides four, individually isolated input channels, for monitoring field voltage sensors [level, position, etc.].
Technical data
The module provides four isolated input channels for monitoring high field temperature sensors [exhaust, boiler, flare, etc.].
Technical data
The module provides four isolated input channels for monitoring field temperature sensors [fluids, bearings, motor windings, etc.].
Technical data
The module provides four loop powered, individually isolated output channels, for interfacing to field devices [panel meters, control valves, actuators, etc.].
Technical data
The module provides eight, individually powered, digital input channels for monitoring field devices [position switches, level sensors, operator inputs, etc.].
Technical data
The module provides eight, individually isolated, electronically switched output channels, for controlling field devices [indicators, actuators, audible alarms, etc.].
Technical data
The module provides four switched relay output channels for controlling field devices [indicators, actuators, audible alarms, etc.].
Technical data
The module provides eight independent signal pathways routed from one side of the module to the other. It can assist to simplify the routing of field wiring.
Technical data

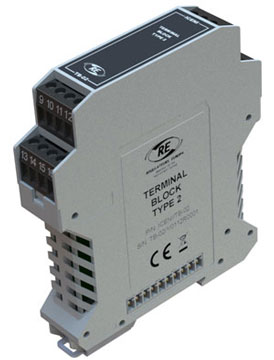

The module provides two signal pathways each with four interlinked terminals routed from one side of the module to the other. It can assist to simplify the routing of field wiring.
Technical data
