| analogue input | analogue output | digital input | digital output | inductive pick-up | PWM input | PWM output | temperature input | alarm output | CAN | ||
| Port 1 | 4...20 mA (isolated) |
||||||||||
| Port 2&3 | 0...5 V 0...10 V (isolated) |
X | |||||||||
| Else | 3x 4...20 mA 0...5 V / 0...10 V |
1x 4...20 mA (isolated) |
8x (6x isolated) |
5x (3x isolated) |
2x | 1x | 2x Pt 1000 or NTC or Ni 1000 | 6x status LED | 2x (1x isolated) |
||
Digital Governors
Viking35
XIOSUC
DC 8
DC 6.200
Digital Governors
REGULATEURS EUROPA and HEINZMANN governors are recognised for their great reliability and durability along with their excellent performance. Available in a wide range, these speed governors are perfectly configurable in order to meet any application's requirements. Combined with the appropriate actuator, HEINZMANN control units make up high-quality governor systems for diesel engines, gas engines, dual-fuel engines and gas turbines, water turbines, steam turbines.
- Tried-and-tested
- High-performance
- Flexible
- Durable
- Precise
- Adaptable
Viking35
An ECU with a high number of I/Os, suitable for a wide range of complex control and monitoring tasks in ships, locomotives and generators. The Viking35 has established itself as the ideal solution on the market for applications involving complex load sharing in particular. The user-friendly Viking Vision software or a corresponding hand-held device can be used to edit or display control and status parameters in real time. It is combined with hydraulic actuators from REGULATEURS EUROPA.
Technical data
- Power supply: 24 VDC
- Degree of protection: IP00
Engine Types & Applications
Diesel Engines
Dual-Fuel Engines
Turbines
Ships
Locomotives

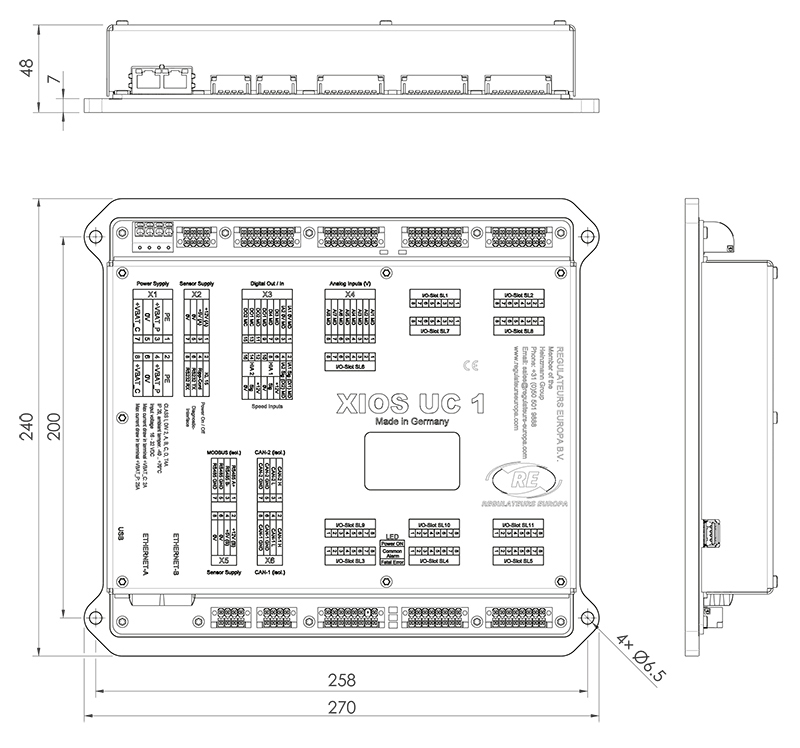

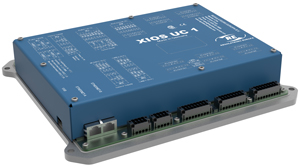

GeneratorsXIOSUC
Multi-functional and modular engine governor with advanced I/O system. Follow-up product for PRIAMOS DC 1-03 / DC 1-04.
Technical data
- Processor: 32 Bit 264 MHz
- Communication interfaces: Ethernet, CAN, RS-232, RS-485
- Display: 4.3" (optional)
- Degree of protection: IP20
- Power supply: 9...32 VDC
Engine Types & Applications
Diesel Engines
Gas Engines Dual-Fuel Engines Turbines

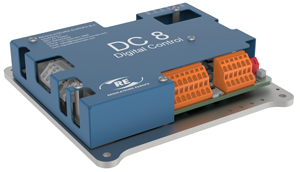

Industrial Vehicles Ships GensetsDC 8
Digital speed governor for combination with actuators from the StG 2000 series. Alternatively, it can be used as a positioner or periphery module to extend the I/O capacity of the primary control unit. Available for marine drives with an output of 0-1 A, for controlling hydraulic actuators from the REGULATEURS EUROPA range.
Technical data
- Power supply: 12 VDC, 24 VDC
- Degree of protection: IP00
- Interface: Galvanically insulated CAN bus
Engine Types & Applications
Diesel Engines Gas Engines Turbines Gensets Industrial VehiclesDC 6.200
A version of the versatile Heinzmann DC 6 controller with an output range of 0-200mA makes it perfect for the small RE 20 actuator and other small proportional electromechanical actuators.
Technical data
- Power supply: 24 VDC, 12 VDC
- Degree of protection: IP00
Engine Types & Applications
Gas Turbines
Steam Turbines
Water Turbines Gensets
